Variable Load Rolling Fatigue Test for Wheelchair Casters on Flooring

Name: Variable Load Rolling Fatigue Test for Wheelchair Casters on Flooring
Brand: Dongjun
Price: 1 USD

Quality Variable Load Rolling Fatigue Test for Wheelchair Casters on Flooring for sale

Model Number : DJ-84

Brand Name : Dongjun

Payment Terms : T/T

Supply Ability : 500pcs

Rotation Speed : 0-60 rpm

MOQ : 1

Delivery Time : 15-25Work days

Price : Negotiable

Turntable Load : 90kg

Cycle Count : Less than 1,000,000 cycles

Overall Dimensions : L970mm × W1380mm × H1700mm

Certification : ISO9001，CE，

Turntable Diameter : 950mm

Place of Origin : Dongguan, China

Machine Weight : Approx. 480 kg

Packaging Details : Wooden crate packaging

Contact Now

Variable Load Rolling Fatigue Test for Wheelchair Casters on Flooring

Product Overview

This testing machine evaluates the wear conditions of wheels and contact base plates under no-load and full-load states. Equipped with three standard polyurethane wheels on an automated turntable, it features automatic counting, variable speed functions, and convenient test panel replacement capabilities.

Technical Specifications

Item	Parameter
Overall Machine Dimensions	L970mm × W1380mm × H1700mm (including weight stack height)
Test Floor Specimen Size	Φ805mm
Turntable Diameter	950mm
Total Load of Turntable	90kg (shared equally by three wheels)
Loading Method	Electric Loading
Adjustable Rotation Speed Range	0-60 rpm
Speed Control Mode	Variable Frequency Speed Regulation
Cycle Count Range	Less than 1,000,000 cycles
Wheel Specification	Diameter 50mm, aluminum core with polyurethane, hardness 90HA
Fixture Positions on Turntable	12
Overall Machine Weight	Approx. 480 kg

Core Testing Capabilities

Floor Specimens Testing

Applicable to various flooring materials including PVC flooring, stone-plastic SPC flooring, wooden flooring, laminate flooring, rubber flooring, resilient floor tiles, and commercial sheet flooring.

Wheelchair Caster Testing

Standard 50mm aluminum-core polyurethane wheelchair rollers (hardness: 90HA), simulating casters for office wheelchairs, medical wheelchairs and mobile equipment.

Durability Testing Components

Flooring Material Durability

The machine tests rolling wear resistance and damage resistance through continuous 24-hour cycles, evaluating:

Surface abrasion, scratches and abrasion loss
Plate cracking and surface layer cracks
Delamination, peeling and warping between layers

Wheelchair Caster Fatigue

Observes wear and tear under 90kg total load conditions, assessing:

Wear, peeling and cracking of polyurethane outer layer
Wheel deformation, eccentricity and hardness degradation
Wear and loosening of aluminum axles

Product Features

Variable Load Rolling Fatigue Test for Wheelchair Casters on Flooring

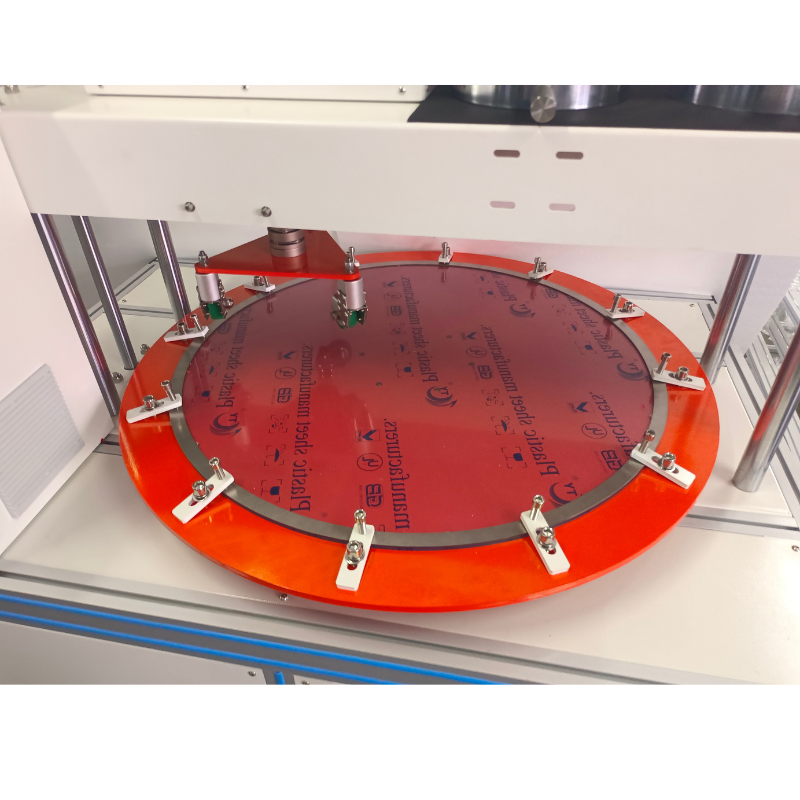

Thickened Object-Carrying Base Plate

Constructed entirely from aluminum material to prevent scratches and corrosion

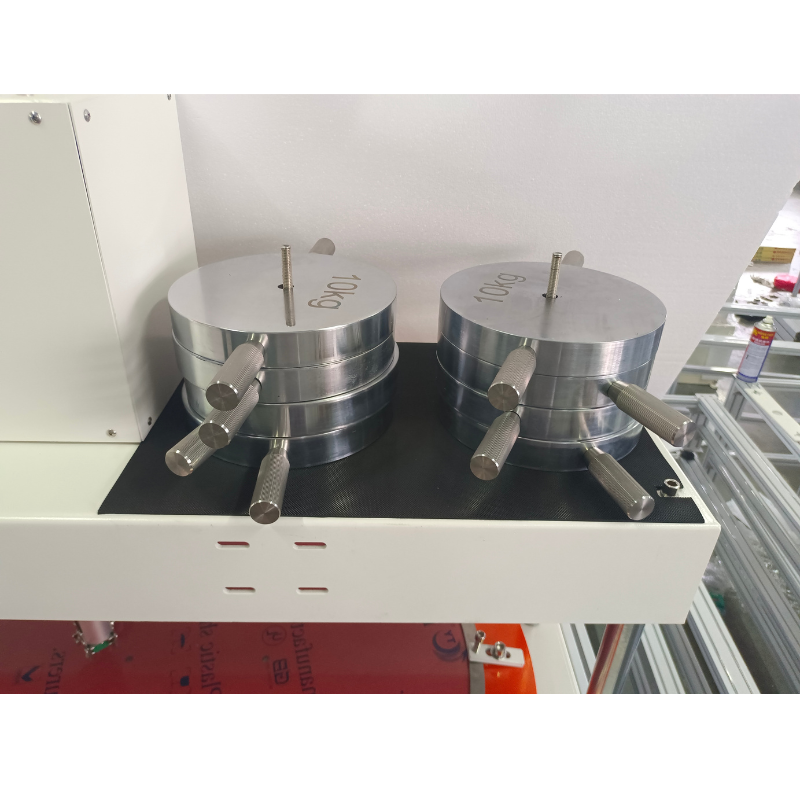

Standard Weights

Precision load application system

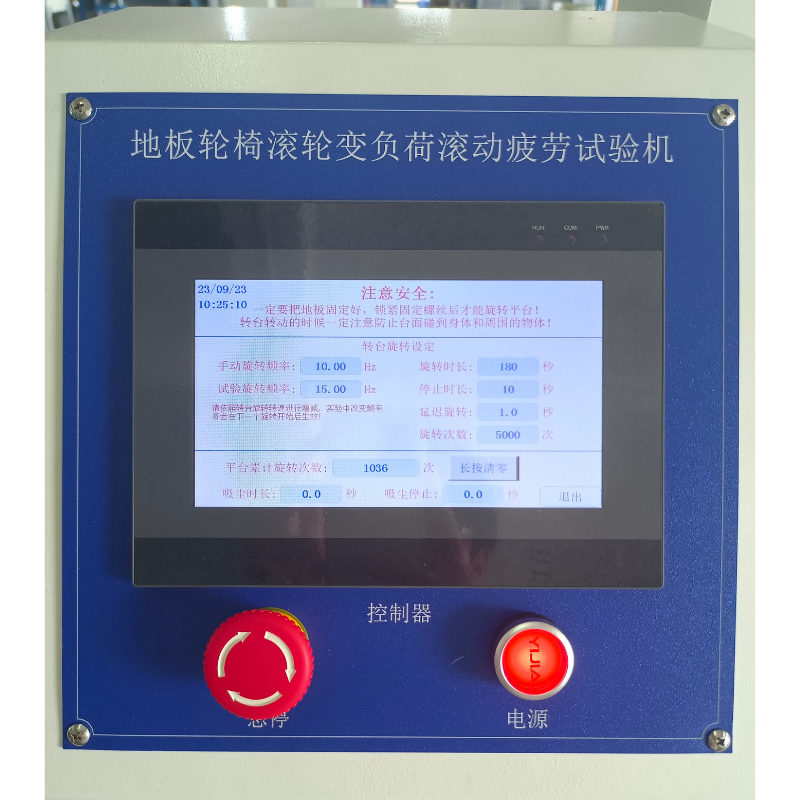

Liquid Crystal Display

Simple and intuitive operation interface

Frequently Asked Questions

How to install and use the product?

The product is shipped with English operating instructions and video. We can also provide operation videos with English narration. For face-to-face training, please contact us in advance.

How about the packing for machine, is it safely protected during transportation?

Our machines are packed in standard export wooden boxes to ensure safe transportation. We have extensive experience delivering testing machines internationally by sea and air without damage.
