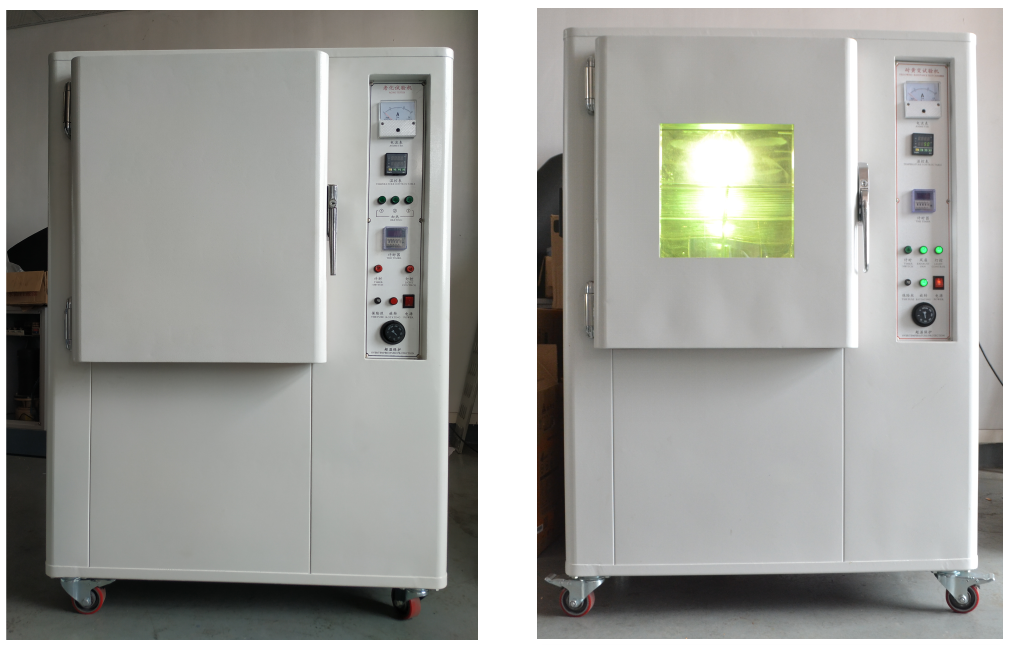

Anti-yellowing Aging Test Chamber
Summary
Anti-yellowing aging test chamber can provide the simulative heat of the sun and ultraviolet radiation environment of space. It is used for observing the anti-yellowing degree of the sample after a period of time effected by the ultraviolet ray and the temperature. Grey stain can be used for reference standard, to judge it’s yellowing degree. Products will change their color when radiated by the sun or influenced by the environment of the container. Use the UV lamp 300W, so that the experiment can be finished in a short time. The machine can also be used as an aging tester or an oven, presenting a multi-function machine.
Test Standards
CNS-3556,JIS-K6301,ASTM-D2436 etc.
Parameters
| Inner Box Size | 50×50×60cm |
| Temperature Range | Aging testing : RT~200°C Anti-yellowing testing : RT~80°C |
| Control Mode | Automatic Calculation Controller |
| Temperature Display | 0.1°C |
| Control Accuracy | ± 3°C |
| Distribution Accuracy | ± 1°C(at-100°C) |
| Time Memory | 0-999 hours, Power Failure Memory Type, with Buzzer |
| Wheel Speed | 45cm,10±2 round/ min |
| UV Light Source | UV300W Bulb |
| Standard Accessories | Shelf Board 2 pieces |
| Heating Method | Hot Air Circulation |
| Security Devices | Over-temperature power-off indicator light;
Safety overload switch ammeter |
| Manufacturing Material | Internal Stainless Steel SUS304;
External Advanced Baking Varnish |
| Outside Dimension (L×W×H) | 100×65×114 cm |
| Weight | 1#,AC220V, 15A |
Features
| Aging testing( RT~200°C ) : Programmable Controller Accelerated Anti Aging Equipment can promote the increase of sulfur rubber deterioration, to calculate the change rate of tensile and elongation before and after heat. It’s generally thought that test for one day at 70°C, in theory as exposed to the atmosphere for 6 months. |
Anti-yellowing testing ( RT~100°C ) : Accelerated Anti Aging Equipment stimulate the atmosphere environment, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50°C for 9 hours, in theory as exposed to atmosphere for 6 months. |
|
 |  |  |
Aging NO window type | Aging No window type | Flat type, just put the sample flat on the sample rack, irradiation degree depends on the distance | Rotary table. During the test, the product can rotate with the round tray to make the sample heated evenly |
Company Profile
PACKING AND TRANSPORTATION
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
