Salt Spray Corrosion Test Chamber

Name: Salt Spray Corrosion Test Chamber
Brand: Dongjun
Price: 1 USD

Quality Salt Spray Corrosion Test Chamber for sale

Brand Name : Dongjun

Model Number : DJ-26-48

Certification : ISO9001，CE，

Place of Origin : Dongguan, China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500pcs

Delivery Time : 15-25Work days

Packaging Details : Wooden crate packaging

Test room size : 60x45x40cm, 90x60x50cm, 120x100x50cm, 160x100x50cm

Testing room temperature : Salt Test (NESS ACSS) 35°C±1°C / Corrosion Test (CASS) 50°C±1°C

Saturated air temperature : Salt Test (NESS ACSS) 47°C±1°C / Corrosion Test (CASS) 63°C±1°C

Salt concentration : 5% sodium chloride

Spray volume : 1.0~2.0ml/h

Power supply : 220V,10A / 220V,15A / 220V,20A

Contact Now

Salt Spray Corrosion Test Chamber

Application Scope
This product is applicable to industries including hardware electroplating, parts processing and manufacturing, electronic component manufacturing, electrical engineering, electronic products, computer and communication, machinery manufacturing, etc., for conducting accelerated salt spray corrosion tests on metal materials, protective parts, electronic devices and industrial products.

Technical parameters

Model	DZYW-60	DZYW-90	DZYW-120		DZYW-160
Test room size(cm)	60x45x40	90x60x50	120x100x50		160x100x50
Outside box size(cm)	107x63x118	141x88x128	190x120x140		230x130x140
Testing room temperature	Salt Test (NESS ACSS) 35°C±1°C / Corrosion Test (CASS) 50°C±1°C
Saturated air barrel Temperature	Salt Test (NESS ACSS) 47°C±1°C / Corrosion Test (CASS) 63°C±1°C
PH	Salt Spray Test (NESS ACSS) 6.5~7.2 Corrosion-resistant Test(CASS) 3.0~3.2
Spray volume	1.0~2.0ml/h
Testing room relative humidity	> 85%
Salt concentration	The concentration of sodium chloride 5%
Testing room Capacity	108L	270L	480L	800L
Brine tank capacity	15L	25L	40L	40L
Air pressure	1.00±0.01kgf/cm2
Spray form	Programmable spray (Including continuous and intermittent spray)
Multiple safety protection devices	Current discharge protection, over pressure protection,over temperature protection, over load fuse protection
Power	220V,10A	220V,15A	220V,20A

Salt Spray Corrosion Test Chamber

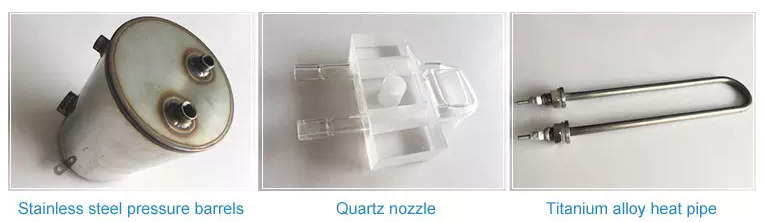

Heating system

Adopt u-shaped titanium alloy high-speed heating electric heat pipe.(Strong in corrosion resistance)
Water and electricity fully independent system, does not affect the salt fog test and control circuit
Temperature control output power are calculus by the microcomputer (High precision, high efficiency and power saving is about 30%)
Low water level protection system.

Spray system

Spray device: spray tower using a nebulizer (spire height adjustable), guiding salt spray, fog particles small, natural subsidence; without nozzle salt crystals, tunable settlement.
Spray gas treatment: two spray gas regulator regulator, the same period the oil to be filtered, humidified gas preheating
fogging treatment: spray brine stored as hidden and built a large storage capacity, brine with preheating Function. Saline spray before brine with quartz filter element, to avoid blocking the nozzle of impurities Sergio terminal test.

Test standards

CNS: 3627, 3385, 4159, 7669, 8886.
JIS: D0201, H8502, H8610, K5400, Z2371.
ISO: 3768, 3769, 3770.
ASTM: B 117, 8117, B268.

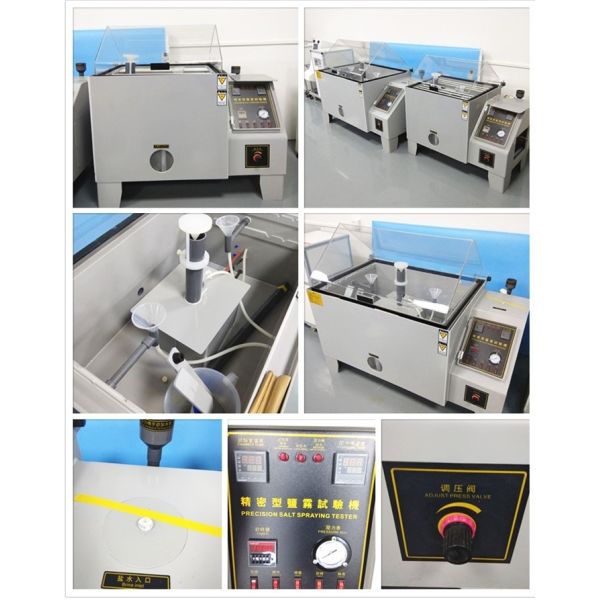

Real imagines

Company Profile

PACKING AND TRANSPORTATION
Salt Spray Corrosion Test Chamber

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

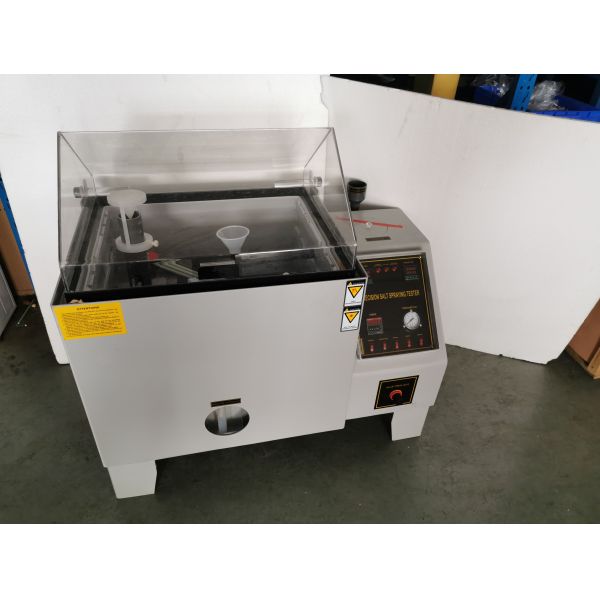

Salt Spray Corrosion Test Chamber Images
